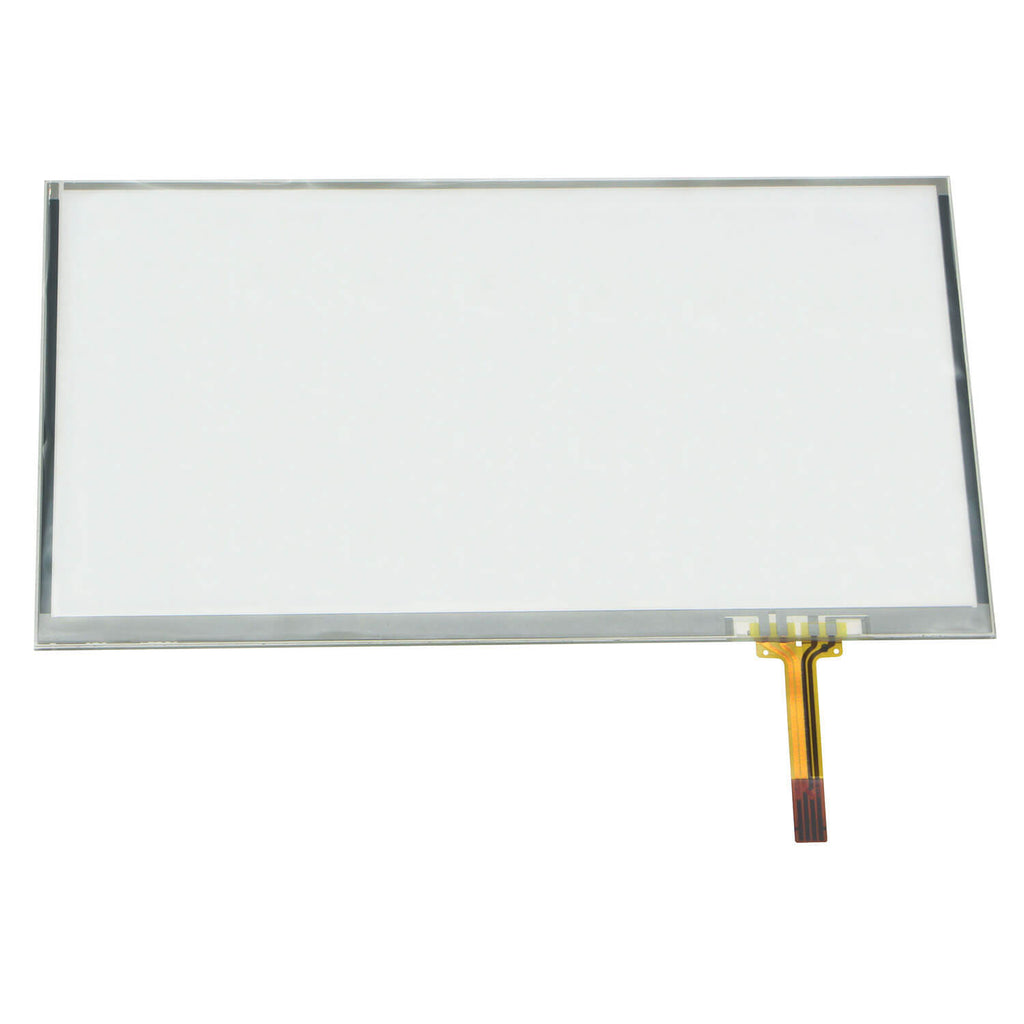

Touch Screen Glass Digitizer 6.1'' Fit For Toyota® Corolla Highlander Radio

$50.00 USD

Fit for Toyota® Scion, Corolla, Highlander.
For GPS navigation touch screen digitizer, luxury audio unit, MFD, radio control system.
Replace touch screen having following problems: Loss of response to touch commands, scratches, cracks, dead pixels, or the polarized protection is wearing off etc..
Size: 6.1 inch (diagonially measured). 4-pins cable ribbon connector.
Part number / Face ID: P10067 / P10470 / P10481 / P10719 / PT546-00140-BU / PT546-00140 / T10015 / AXCP-Q14U / P11816 / P10431 / P10121 / P10544 / P10485 / 86410-06030 / 86410-06210 / 86140-06020 / 86410-35270 / 86410-35220 / 86140-0E051.

Features & Specifications:

Brand new, high quality and good operation radio touch screen replacement.
Fit for Toyota® Corolla, Highlander 6.1" radios.
Size: 6.1 inch (147*82.5 mm).
View Area: 135.8*68.8 mm.
Interface: 4-Pin.
Thickness: 1.2mm.
Length of FPC (flexible print circuit) / Ribbon cable connector: 32.0mm.
Working voltage: 5V.
Special feature: Support Can-Bus.
Main material: Glass.
TFT (LCD) technology.
Replacing touch screen: Loss of response to touch commands, scratches, cracks, dead pixels, or the polarized protection is wearing off.

Compatible with the following vehicles with Radios made by PIONEER® (Radio face-plate number starts with A P, example p01584):

Attention:

Installation instructions not included. Tool not included.
It is only a touch panel, not including a LCD display.
Please check the exact dimensions of the touch screen before buying to make sure that it is fit for your device. If there is any question/problem, please feel free to contact us.
There is a layer of protective film on the surface of the panel. Please remove the protective film before using it.

Package included:

1x Touch screen
